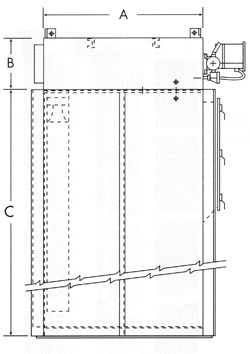

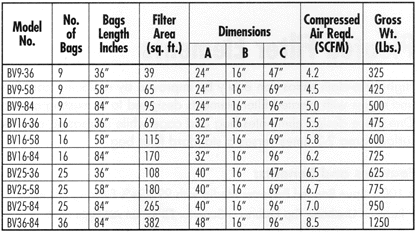

Bin vent filters are used to separate fine material from air when pressure filling a surge bin or a silo. Advanced Bulk and Conveying, Inc., bin vents operate on reverse air pulse principle. Dusty air enters the unit and passes through the filter bags, leaving dust on the bag exterior. Filtered air is exhausted to the atmosphere at the top of the unit. An electric timer actuates valves in sequence, which releases compressed air through venturi tubes. Shock waves formed in the venturi travel downward and release caked dust from the bag exterior.
The standard unit is of carbon steel construction, includes 110 VAC auto sequencing reverse pulse timer controls in a NEMA 4 enclosure, 16 oz. polyester felt filter bags, differential pressure gauge, exhaust vent, and industrial enamel coated exterior.
Options:
Bags, Cages, Cups, Venturis, Cartridges
Advanced Bulk and Conveying, Inc.,
provides quality replacement parts for
most types of central filters, filter receivers
and dust collectors using bag and cage
filtration systems. We handle a wide
selection of items to repair, maintain and
upgrade your filtration equipment.

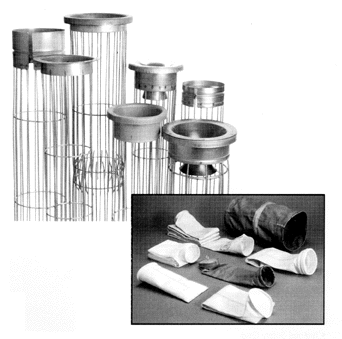

FILTER CAGES
FILTER BAGS
OTHER PRODUCTS
Pleated Filter Elements
High air-to-cloth ratios can easily be improved by replacing conventional bags
and cages with pleated filter elements designed to fit existing cups and venturis. One piece design eliminates bag and cage while increasing available filter
surface area 2-3 times versus a standard filter bag.
Features and Benefits:
Options:

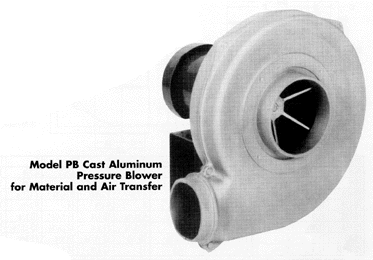

Advanced Bulk and Conveying, Inc., is a supplier of high quality fans and
blowers. These blowers can be used to exhaust dusty air and to convey
many types of materials. The direct drive, cast aluminum housing PB model
pressure blower is most popular because of its non-corrosive product
contact area, simple design, large size range, and low cost.

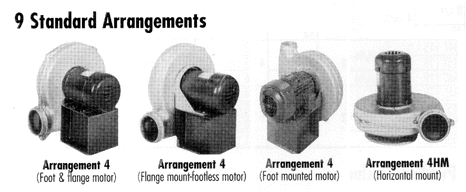

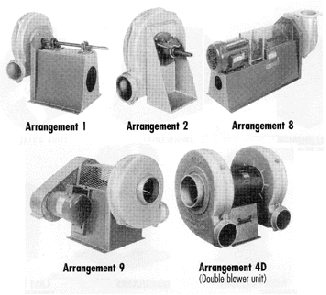

Fans Continued

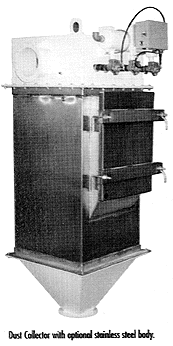

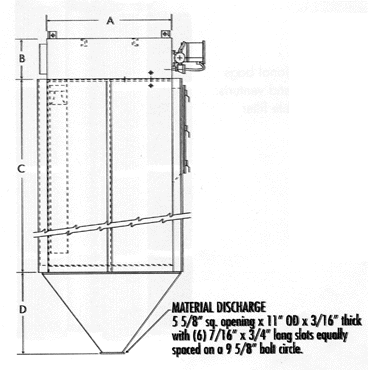

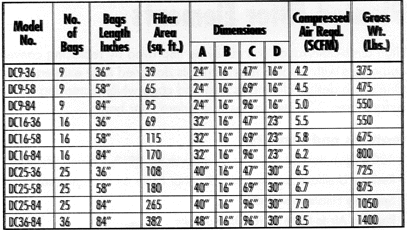

Dust Collectors are used to separate fine material from product material when pressure filling a surge bin or a silo. Advanced Bulk and Conveying, Inc., dust collectors operate on reverse air pulse principle. Dusty air enters the unit and passes through the filter bags, leaving dust on the bag exterior. Filtered air is exhausted to the atmosphere at the top of the unit. An electric timer actuates valves in sequence, which releases compressed air through venturi tubes. Shock waves formed in the venturi travel downward and release caked dust from the bag exterior and then collects the dust in the discharge cone.
The standard unit is of carbon steel construction, includes 110 VAC auto sequencing reverse pulse timer controls in a NEMA 4 enclosure, 16 oz.
polyester felt filter bags, differential pressure gauge, exhaust vent, and industrial enamel coated exterior.

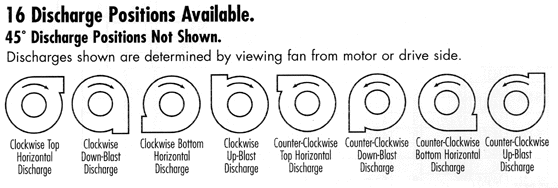

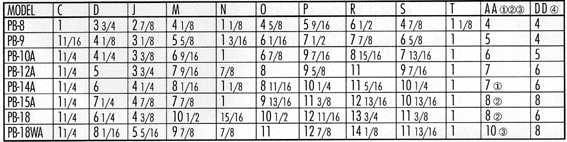

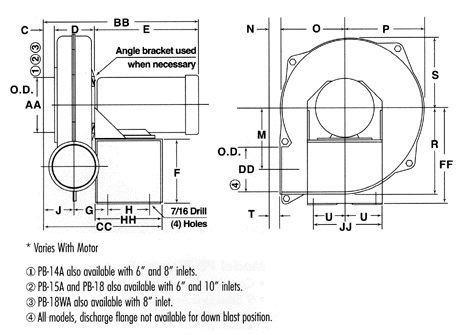

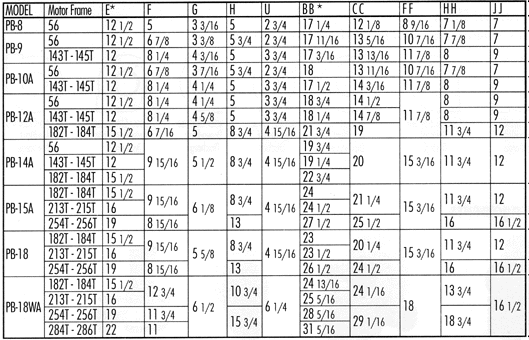

Model PB Blower Features:
